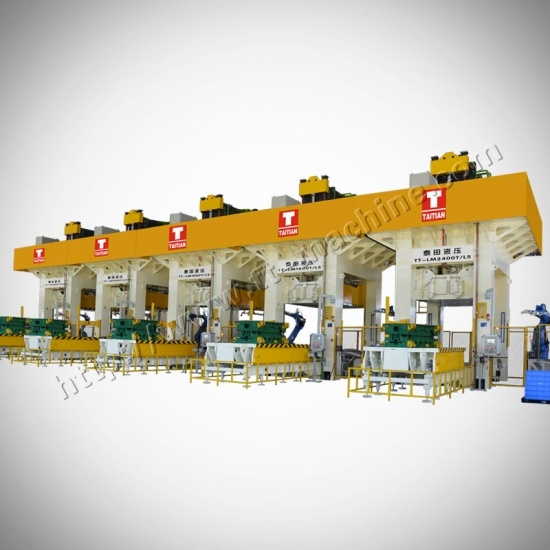

2400T Hydraulic Metal Forming Press for New energy vehicle battery case

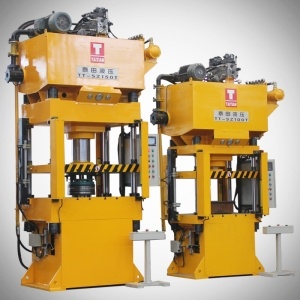

TAITIAN Hydraulic Metalforming Press also called metal stamping press,deep drawing press, it is used for deep drawing,stamping,punch of metal sheet for automobile  kitchenware and household appliance industries.Taitian deep drawing press adopts Taiwan technology,the speed and pressure has been well adjutable by using servo driven control system.

Main Specification

Main Features:

1) The Hydraulic Metalforming press is available up to 3000 Ton capacity as per customer's individual specifications and requirements. Each press is designed through Finite Element Structural Analysis and optimization to assure high strength and rigidity. High capacity press is preferred in H Frame structure.

2) The metalforming press is equipped with advanced and systemized Taiwan hydraulic system featuring oil leakage resistance, anti-vibration, low energy consumption, low noise level and easy maintenance.

3) 4 sides of brass guide rails of full stroke length not only ensure high accuracy but also allow easy adjustment of slide leveling.

4) The press fully meets CE safety requirements. Two side locking cylinders lock the slide when it reaches top position. And two sets of light curtain sensors are fitted in the front and rear that will stop the machine when human body carelessly enters the working area.

5) Mitsubishi PLC and 7 / 10 inch Taiwan Weinview touch screen make the machine easy for operation and specification adjustable.

6) Each press is manufactured under strict quality control management with good quality components from France, Japan, Germany, USA and Taiwan to assure the best performance and accuracy. H Frame deep drawing press has been awarded with CE Certificate.

Optional:

1. Moving Bolster / Die Change Trolley

2. T-slots on slide or bolster

3. Stamping Dampers for shock proof while stamping

4. Ejectors on slide or bolster

Applications:

Deep draw press is applied in production techniques, like deep drawing, stamping, cutting, bending, flanging of metal sheet.

Particularly applied in the following industries:

1) Automobile Industry: battery cover, vehicle body, chasis, axle housing, fuel tank, door, wheelbarrow tray and more.

2) Household Appliance Industry: Components for air conditioner, refrigerator, washing machine, microwave oven, electric cooker etc.

3) Kitchen Ware Industry: Stainless steel utensil, LPG cylinder, cooking bench, Aluminum Cookware.

Hydraulic Control System

Hydraulic control system takes high precision logic valving system as standard. Pipeline configuration is simple and clear, making maintenance easy. Pipeline connection way preferentially adopts flange joint to avoid oil leakage.

All motors, pumps and pipes are fitted based on advanced Taiwan technology to achieve shock-resistance.

Electric Control System

Electric box is featured with dustproof, waterproof and oil proof. Adopt Schneider electric units to ensure high quality. All units to ensure high quality. All units have labels, so it's clear to identify and easy to maintain.

Production Process:

Certification:
