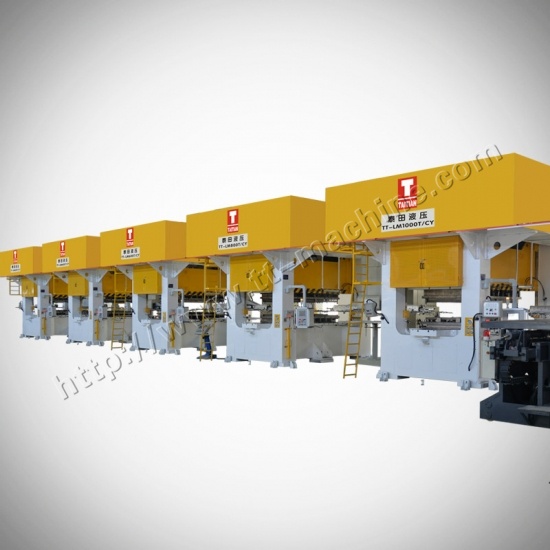

1000T Hydraulic Deep Drawing Press/Metal Stamping Press

TAITIAN Deep Drawing Press also called metal stamping press, it is used for deep drawing,stamping,punch of metal sheet for automobile, kitchenware and household appliance industries.Taitian deep drawing press adopts Taiwan technology,the speed and pressure has been well adjutable by using servo driven control system.

Main Features

1.   Hydraulic deep drawing  with H frame structure and removable tie bar, strong machine rigidity, easy to install.

2.    Use eight side guiding system, high precision, strong anti-side load.

3.    All hydraulic systems are all installed on the upper platform to ensure oil tank/main cylinder/oil pump/valve block are absolutely compacted, with advantage of low shock,short pipeline and low noise.

4.    Stamping circle time is around 4 seconds/circle, deep drawing circle time will be around 6 seconds/circle

5.    With Electric die changing trolley.

6.    Suitable robot for loading and unloading can be equipped according to customers’ products size.

Applications

Apply for stamping /drawing TV rear panel,as well as other hardware’sdrawing and short stroke stamping process.

Options

Die Changing system

Lower bolster moving out

Robot loading and unloading system

Hydraulic Control System

Hydraulic control system takes high precision logic valving system as standard. Pipeline configuration is simple and clear, making maintenance easy. Pipeline connection way preferentially adopts flange joint to avoid oil leakage.

All motors, pumps and pipes are fitted based on advanced Taiwan technology to achieve shock-resistance.

Electric Control System

Electric box is featured with dustproof, waterproof and oil proof. Adopt Schneider electric units to ensure high quality. All units to ensure high quality. All units have labels, so it's clear to identify and easy to maintain.

Production Process:

Certification:
