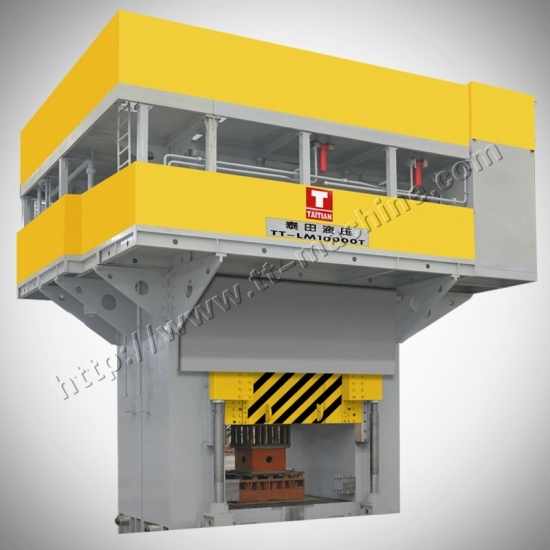

10000T Hydraulic Forging Press for Wheel Hub

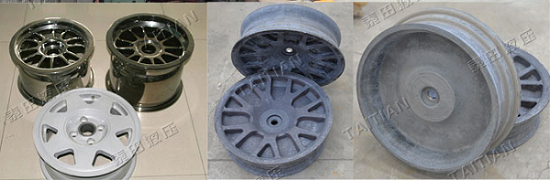

TAITIAN offers Hydraulic forging Press included hydraulic cold forging press and hydraulic hot forging press ,it is used for forging aluminium alloy wheel hub,magnesium alloy wheel hub and bicycle components and other small metal parts. The capacity of Taitian cold / hot forging press can be up to 16000tons , adopts Taiwan technology,the speed and pressure has been well adjutable by using servo driven control system.

Main Specification:

We are able to custom manufacture hydraulic cold forging press machine/hot forging presses in a wide range of sizes and capacities as per customers’requirement.

Characteristics:

1) The hydraulic Cold Forging press machine is designed through finite element structural analysis and optimization to assure high strength and rigidity.

2) The advanced design of one main cylinder and two lifting cylinders fully ensures a good balance.

3) Integrated cartridge valve is introduced for flexible and reliable movement without oil leakage.

4) Siemens PLC and Schneider electric components provide the press with stable performance.

5) Hydraulically safety loop and locking device on the top dead center (T. D. C. ) assure high safety.

Optional:

Applications:

Cold /Hot Forging Press is suitable for forging parts of aluminum alloy, copper, titanium alloy and magnesium alloy needed in hand tools, autos, sports equipments, medical equipments etc.

Hydraulic Control System

Hydraulic control system takes high precision logic valving system as standard. Pipeline configuration is simple and clear, making maintenance easy. Pipeline connection way preferentially adopts flange joint to avoid oil leakage.

All motors, pumps and pipes are fitted based on advanced Taiwan technology to achieve shock-resistance.

Electric Control System

Electric box is featured with dustproof, waterproof and oil proof. Adopt Schneider electric units to ensure high quality. All units to ensure high quality. All units have labels, so it's clear to identify and easy to maintain.

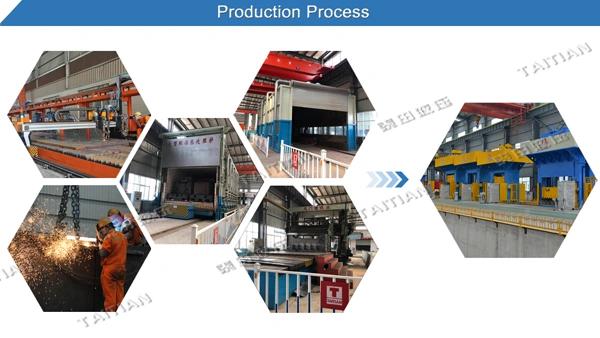

Production Process:

Certification:
