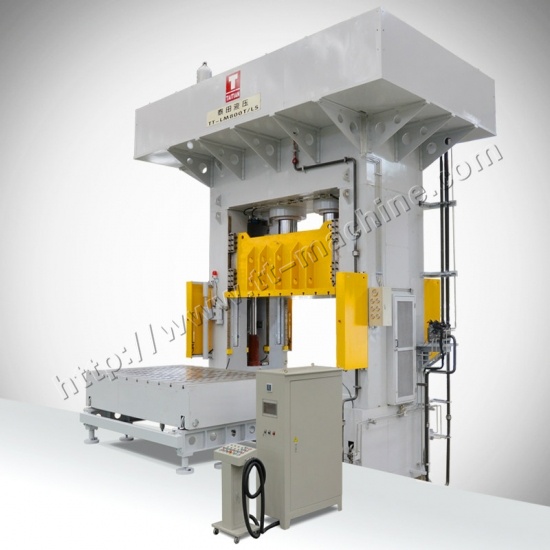

800T Hydraulic Die Tryout Press Machine with Lower Movable Bolster

TAITIAN offers hydraulic die tryout press machine that can be custom built to fit the needs of high precision die spotting. Hydraulic die tryout press also called die spotting press, mould tryout press , our die spotting presses offer excellent performance and are very reliable and can be used for efficient and quick die/mould try out.

Main Specification:

We are able to custom manufacture hydraulic die spotting press machine/die tryout presses in a wide range of sizes and capacities as per customers’requirement.

Characteristics:

1. Such high precision Hydraulic die tryout press machine is specially designed for quick die/mould try out. The capacity ranges from 1000KN to 30000KN.

2. This kind die tryout press adopt special safety loop to ensure high safety and working efficiency as per the current production need of speed as well as mechanical safety.

3. Safe and reliable control system makes easy operation and high working efficiency. The press is designed and manufactured as per CE standards.

4. Systemized hydraulic circuit, with introduction of special logic loop design, is characterized by leak-prevention , anti-vibration and easy-maintenance.

5. Each press is made under strict quality control to assure the best performance and accuracy.

6. The press is equipped with moving bolster or die change trolley for easy unloading of products and fast die change.

Options:

• Automatic and Manual Die Clamp Device
• Upper Table 90° tilting system
• Upper Table 180° tilting system
• Lower bolster moving out system

Applications:

Taitian’s die tryout presses are primarily used for the testing and trying out of dies/moulds to ensure manufacturing precision and smooth parts manufacturing, die tryout presses are widely used in mould factories and other automobile industries.

Hydraulic Control System

Hydraulic control system takes high precision logic valving system as standard. Pipeline configuration is simple and clear, making maintenance easy. Pipeline connection way preferentially adopts flange joint to avoid oil leakage.

All motors, pumps and pipes are fitted based on advanced Taiwan technology to achieve shock-resistance.

Electric Control System

Electric box is featured with dustproof, waterproof and oil proof. Adopt Schneider electric units to ensure high quality. All units to ensure high quality. All units have labels, so it's clear to identify and easy to maintain.
